Fluval FX4 Review
Our Fluval FX4 review covers its 250-gallon rating, included filter media, maintenance schedule, and setup needs, and when the FX6 or a smaller canister fits.
Updated October 24, 2026
The Fluval FX4 is the middle model in Fluval’s FX line of canister filters, rated for aquariums up to 250 gallons. It is worth considering if you run a large freshwater or saltwater tank that does not need the bigger FX6, or a mid-size tank with a heavy waste load where you want a full gallon of biological media. On a typical 55 or 75 gallon community tank it is more filter than you need, and the Fluval 407, rated for up to 100 gallons per its listing, is the closer fit, though that listing has voltage and dimension conflicts to check first.
This review is based on research, not on running the filter ourselves. We read the Amazon listing in full and checked its figures against Fluval’s FX series user manual (US edition, which covers the FX2, FX4, and FX6). Where the listing is unclear or contradicts itself, we say so and tell you which number to plan around.
This review is general product information, not repair or electrical safety advice. Follow the safety instructions in your product’s manual, supervise children, and contact the manufacturer or an authorized service center if a product sparks, overheats, or has a damaged cord.
We earn a commission from qualifying purchases made through links on this page. Commissions never affect our rankings or AquariumTech Scores.
Fluval FX4 High Performance Canister Filter
As an Amazon Associate we earn from qualifying purchases.
Fluval FX4 at a Glance
Rows marked “Manual” come from Fluval’s FX series user manual; rows marked “Listing” come from the Amazon listing.
| Spec | Fluval FX4 | Source |
|---|---|---|
| Rated aquarium size | Up to 250 US gallons | Manual, listing |
| Pump output | 700 US gallons per hour | Manual, listing |
| Filter circulation | 450 US gallons per hour (measured without media) | Manual, listing |
| Biological media volume | 1 US gallon | Manual, listing |
| Total filtration volume | 3.7 US gallons | Manual |
| Media baskets | 2 stackable baskets with foam inserts | Manual, listing |
| Maximum head height | 6.9 feet | Manual |
| Power draw | 30 W at 120V/60Hz | Manual |
| Height | 16.5 inches (listing figures vary, see below) | Listing |
| Weight | 14.17 pounds | Listing |
| Warranty | 3-year limited (impeller and motor seal excluded as wear parts) | Manual, listing |
| Model number | A214 | Listing |
The height needs a caveat. The feature bullets and description give 16.5 inches, but the listing’s specification fields show both 15.6 inches and 17.7 inches for the height. If your cabinet is close, plan around the largest figure and leave extra room above the canister, since the lid and baskets lift straight out. The two flow figures also mean different things: 700 gallons per hour is the pump’s output, while 450 gallons per hour is what Fluval measured through the canister with equal-length hoses and no media, per the manual. Packed baskets and longer hose runs will bring real flow below both.
Who the Fluval FX4 Canister Filter Suits
- Large tanks below the FX6’s range: the manual rates the FX4 for up to 250 gallons, so a 125 or 180 gallon tank sits within its rating without stepping up to the larger, heavier FX6.
- Mid-size tanks with big fish or turtles: the listing gives 1 gallon of biological media. On a heavily stocked 75 or 90 gallon tank, that is well within the filter’s 250-gallon rating.

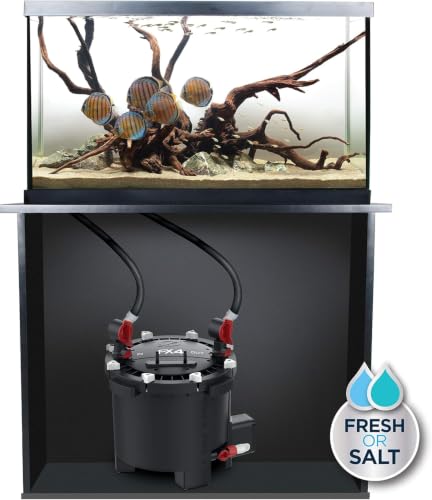

- Shorter cabinets: the listing describes a compact 16.5-inch design, though the listing’s own height fields vary (up to 17.7 inches); either way it is shorter than the roughly 21-inch FX6.
- Freshwater or saltwater keepers: the manual says the filter may be used with fresh or salt water in household aquariums.

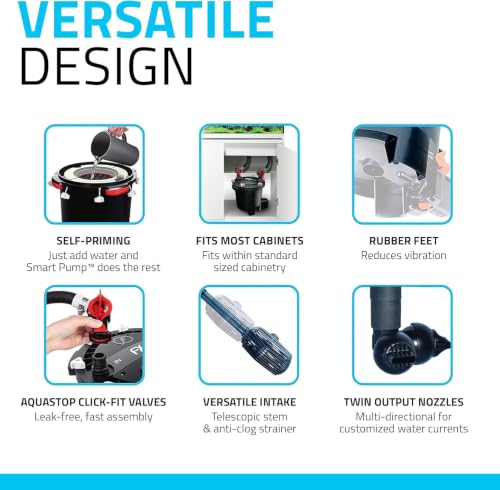

- Keepers who want a built-in drain: the utility valve on the FX4 and FX6 (not the FX2) drains the canister and supports water changes, per the manual.
What We Like
- Media capacity for its height: 1 gallon of biological media inside 3.7 gallons of total filtration volume, per the manual, in a canister the listing puts at 16.5 inches tall.
- Self-starting Smart Pump: according to the Amazon listing, an electronic circuit board monitors impeller speed and force, starts the filter once it is filled with water and plugged in, and pauses the pump on a 12-hour cycle so trapped air can escape.
- No bypass by design: the listing says the stacked baskets are precision-engineered to stop water from going around the media, and each basket is lined with a foam insert for mechanical pre-filtering.
- Easier basket handling: instant-release T-handles lift and separate the baskets, per the listing.
- Lower power draw than the FX6: 30 W against 43 W at 120V, per the manual, and a 3-year limited warranty on both.
What Could Be Better
- Unclear dimensions: the listing gives three different heights (15.6, 16.5, and 17.7 inches), so you have to measure with margin.
- Weight once full: 14.17 pounds empty per the listing, and you pour at least 1.6 gallons of water in before the first start, per the manual, so it gets heavy to move.
- Setup takes some work: the manual allows 30 to 45 minutes, calls for a Phillips screwdriver and a utility knife, and has you cut the hosing to length.
- Lower head height than the FX6: 6.9 feet against 10.8 feet, per the manual, which matters if the canister sits far below a tall tank.
- Recurring parts and media: the manual’s schedule calls for a new carbon pad every month and a new impeller and motor seal ring every year, and the warranty excludes those wear parts.
Fluval FX4 Filter Media: What Is Included and How Often to Change It

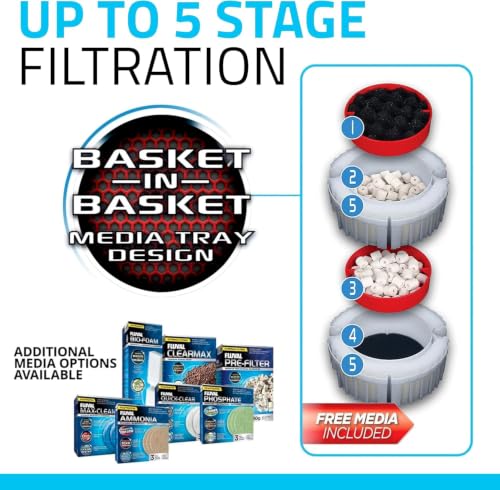

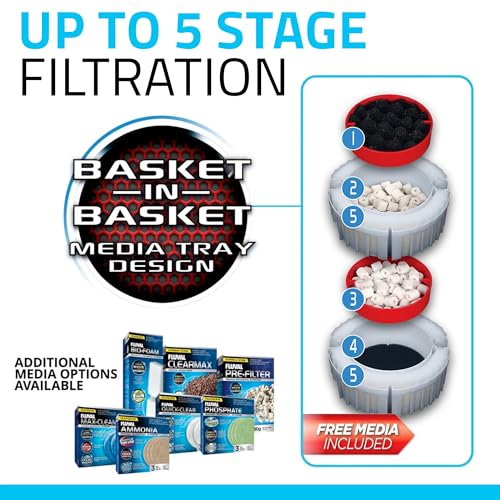

The listing says all filter media are included, covering mechanical, chemical, and biological stages. The manual’s parts list names the FX4 set as four Bio-Foam pieces, one Bio-Foam+, BIOMAX ceramic rings, one carbon pad, and two media bags.
Before the first start, the manual asks you to rinse the baskets and media under running tap water to remove dust, then return each type of media to the level it was packed in unless you are deliberately changing the setup. Any loose granular media, such as carbon or ammonia remover, must go in a media bag in the bottom basket so particles cannot reach the impeller. Leave at least half an inch of free space at the top of each basket so the stack fits together.
For ongoing care, the manual’s maintenance chart sets this rhythm:
| Media or part | Monthly | Every 3 months | Every 6 months | Yearly |
|---|---|---|---|---|
| Bio-Foam | Check and clean | Replace half | ||
| Bio-Foam+ | Check and clean | Replace | ||
| BIOMAX rings | Rinse | Replace half | ||
| Carbon pad | Replace | |||
| Impeller and motor seal ring | Check and clean | Replace |
Source: Fluval FX series user manual (US edition). The manual says to rinse foam in aquarium water or dechlorinated tap water, rinse biological media in aquarium water, and replace chemical media rather than clean it. It also warns against soap or detergent on the canister and baskets. Replacing only half of the foam and rings at a time, as the chart specifies, avoids swapping out all of the biological media at once.
Sizing: What the 250-Gallon Rating Means
Fluval rates the FX4 for aquariums up to 250 gallons. That is the top of the range the maker designed it for, not a promise about water quality: stocking, fish size, feeding, and how often you clean the media all change what a tank needs. Here is how the FX line steps up, per the manual:
| Model | Rated for | Pump output | Filter circulation | Biological volume | Media baskets | Head height |
|---|---|---|---|---|---|---|
| FX2 | Up to 175 US gal | 475 US GPH | 343 US GPH | 1 US gal | 2 | 6.9 ft |
| FX4 | Up to 250 US gal | 700 US GPH | 450 US GPH | 1 US gal | 2 | 6.9 ft |
| FX6 | Up to 400 US gal | 925 US GPH | 563 US GPH | 1.5 US gal | 3 | 10.8 ft |
Three practical rules follow from those numbers. If your tank is over 250 gallons, the FX4 is outside its rating and the FX6 is the FX model to look at. If your tank is in the 100 to 250 gallon range, the FX4 is rated for it with room to spare at the lower end. If your tank is under 100 gallons with ordinary stocking, the FX4 still works, but you are paying in cabinet space and current for capacity you may not use; a smaller canister rated closer to your tank size is usually easier to fit, carry, and service.
Fluval FX4 Setup: The Model-Specific Details
Install and service the FX4 by the manual that comes with it. The general rules (gravity-fed, canister below the water line, hoses within the manual’s length limits and free of loops) are the same across the FX line; these are the points specific to the FX4:
- Two baskets, not three: the FX4 stacks two media baskets, per the manual, so plan your media layout around that before you fill them.
- Priming water: pour at least 1.6 gallons into the canister before the first start, then close the eight lid fasteners by hand; the manual warns against using tools on them.
- Draining before service: on the FX4 (and FX6, but not the FX2), the manual has you close both valves, unplug the pump, and drain the canister through the utility valve before you open the lid.
- Electrical safety: unplug every aquarium appliance before your hands go in the water, and do not attempt electrical repairs yourself, per the manual. If the cord or pump is damaged, or the filter leaks, stop using it and contact Fluval.
To see how canisters fit alongside other filter types, browse our aquarium filter section.
How It Compares
Fluval FX4 vs FX6: moving up buys you a third basket, a 400-gallon rating, and 10.8 feet of head height, per the manual, at the cost of 13 more watts and a canister about 21 inches tall per the FX6 listing. For a tank within 250 gallons, the FX4 does the same job in less cabinet height.
Fluval FX4 vs FX2: the media volume is the same on paper (1 gallon, two baskets, per the manual), so the FX4’s case rests on its higher 250-gallon rating, stronger pump, and the utility valve the FX2 lacks.
Fluval FX4 vs the 407: the 407, the largest of the four 07 sizes listed on Amazon, is rated for aquariums up to 100 gallons, according to its listing. For a 55 or 75 gallon tank with ordinary stocking, it is the lighter canister (9.7 pounds against 14.17, per their listings). The 407 listing’s voltage field shows 230 V, which conflicts with Amazon.com selling it in the US; check the rating label. Its listing also gives two different sets of dimensions, so check your cabinet clearance against both. The FX4 makes more sense once you pass 100 gallons or carry a heavy bioload.
Who Should Look Elsewhere
- Owners of tanks over 250 gallons: that is beyond the FX4’s rating; look at the FX6.
- Owners of small or lightly stocked tanks: a 55-gallon or smaller community tank is better matched to a canister rated nearer its size, which is usually easier to fit under the stand and carry to the sink. The 407, rated for up to 100 gallons per its listing, is the largest of the four 07 sizes listed on Amazon; check its rating label and both listed sets of dimensions before ordering.
- Setups with a long vertical run: if the canister must sit far below the tank, the FX6’s 10.8-foot head height gives more margin than the FX4’s 6.9 feet.
- Shallow cabinets: if you cannot clear about 17.7 inches plus room to lift the lid, measure again before ordering.
- Buyers who want built-in UV or heating: the listing describes neither feature.
Why You Should Trust Us
We do not conduct our own product trials; our picks draw on published specifications, independent reviews, and Amazon owner ratings, which also set each product’s AquariumTech Score. Affiliate commissions have no say in what we write about the FX4 or how it scores; the How We Review page explains the method in full.
The FX2, FX4, and FX6 appear to share one Amazon listing and its owner ratings, so we lowered the FX4’s AquariumTech Score by an editorial adjustment, as described on our How We Review page.
Final Verdict
The Fluval FX4 is a sensible size for large tanks up to its 250-gallon rating and for mid-size tanks with heavy waste loads. It offers a full gallon of biological media, a self-starting pump, a built-in drain valve, and a 3-year warranty in a shorter canister than the FX6. The trade-offs are a confusing set of height figures on the listing, a lower head height than the FX6, and regular wear parts and carbon pads to budget for. If your tank is under 100 gallons with ordinary stocking, start with a smaller canister; if it is over 250 gallons, step up to the FX6.
Frequently Asked Questions
What size aquarium is the Fluval FX4 for?
Fluval rates the FX4 for aquariums up to 250 US gallons, per the manual and the Amazon listing. Tanks larger than that fall into the FX6’s range.
What filter media comes with the Fluval FX4 filter?
The listing says mechanical, chemical, and biological media are included. The manual’s parts list names four Bio-Foam pieces, one Bio-Foam+, BIOMAX ceramic rings, a carbon pad, and two media bags.
How often should I clean the FX4 canister filter?
The manual’s chart lists a monthly check of the Bio-Foam, a monthly rinse of the BIOMAX rings, and a monthly carbon pad change, with impeller checks every three months. Follow the chart in the manual that comes with your filter.
Does the Fluval FX4 high performance canister filter need priming?
Not by hand. You fill the canister with at least 1.6 gallons of water, close it, and plug it in; the pump then runs an automatic priming sequence, per the manual.
Should I buy the FX4 or the FX6?
Pick the FX4 for tanks within its 250-gallon rating, especially when cabinet height is limited. Pick the FX6 for tanks over 250 gallons, for the extra media basket, or when the canister must sit far below the tank.
